- Used for preparing and storing hot water for domestic needs produced using traditional heat generators.
- Made of high quality carbon steel S235JR EN10025, assembled and welded by automatic welding.
- Non-removable spiral heat exchangers made of S235JR EN10025 steel pipes welded to the tank.
- Flange for inspection and cleaning or for integration.
- Internal anti-corrosion treatment with glass transition (enamel coating) in accordance with DIN 4753.3, suitable for use and consumption of drinking water in accordance with D.M. 174/2004 and EU Directive 76/893.
- Magnesium anode with thread.
- Thermal insulation - polyester fiber panel, environmentally friendly and recyclable, with fire resistance Euroclass B s2 d0 in accordance with UNI ENI 13501-1 standard, with high insulating ability.
- PVC exterior with zipper.
- 2 years warranty against corrosion.
- Certificate Complies with Directive PED 2014/68/EU Article 4.3.

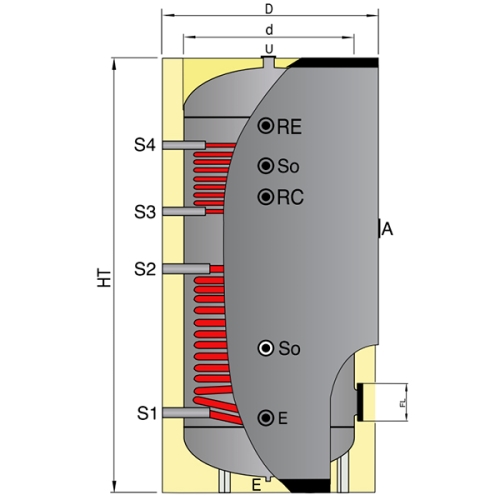

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 800 | 1000 | 2170 | 245 |
| FL - Flange diameter (Øi x Øe), mm | 120x180 |
| SS1 - heat exchanger area, m² | 3.54 |
| SS2 - heat exchanger area, m² | 1.5 |
| Volume of liquid in the heat exchanger, l | 26.09+7.1 |
| E - Cold water inlet | G1"¼ |
| U - Domestic hot water outlet | G1"¼ |
| RC - Sanitation | G1"¼ |
| RE - Electric heater | G1”½ |
| S - drain connection | G1"¼ |
| A - Magnesium anode | G1”½ |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| S1, S2 - input, output of the lower heat exchanger | G1"¼ |
| S3, S4 - input, output of the upper heat exchanger | G1" |
| PE - maximum pressure, bar | 10 |
| PES - maximum operating pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
