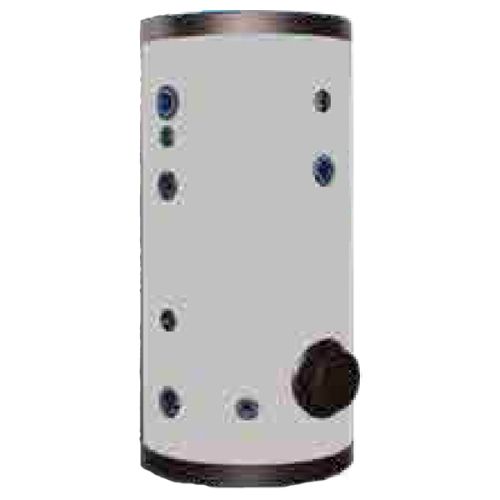

- Used for the preparation and storage of domestic hot water produced using alternative low-temperature heat generators: heat pumps, solar energy, energy recovery, etc.
- Sheets made of AISI 316L stainless steel, assembled and welded using automatic welding.
- Stationary spiral heat exchanger with AISI 316L stainless steel tubes welded to the tank
- Flange for inspection and cleaning or for integration.
- Internal anti-corrosion treatment: pickling and passivation.
- non-removable rigid polyurethane model 200÷500 liters, removable rigid polyurethane cups for other models.
- ABS exterior for 200÷500 liter models, PVC with lockable zipper for other models.
- 5 years warranty against corrosion.
- Certificate Complies with Directive PED 2014/68/EU Article 4.3.
| 650 | 750 | 1775 | 155 |
| 650 | 750 | 1730 | 135 |

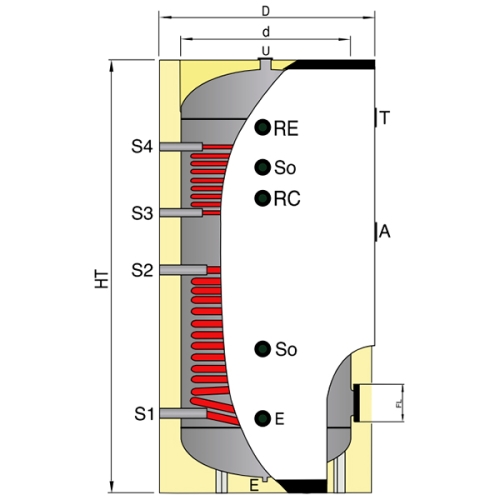

| FL - Flange diameter (Øi x Øe), mm | 120x180 |
| SS1 - heat exchanger area, m² | 2.36 |
| SS2 - heat exchanger area, m² | 0.79 |
| Volume of liquid in the heat exchanger, l | 11.1+3.71 |
| E - Cold water inlet | G1"¼ |
| U - Domestic hot water outlet | G1"¼ |
| RC - Sanitation | G1"¼ |
| RE - Electric heater | G1”½ |
| S - drain connection | G1"¼ |
| A - Magnesium anode | G1"¼ |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| S1, S2 - input, output of the lower heat exchanger | G1" |
| S3, S4 - input, output of the upper heat exchanger | G1" |
| PE - maximum pressure, bar | 10 |
| PES - maximum operating pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
