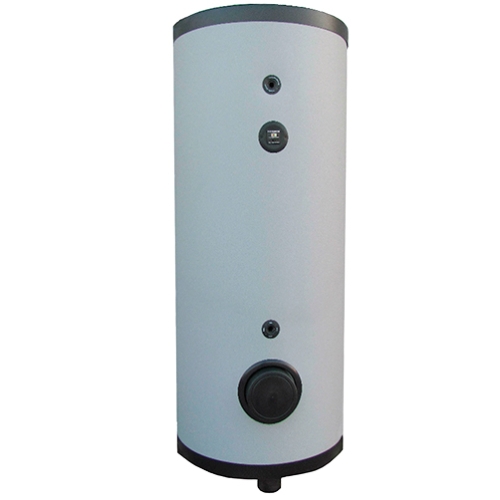

- Used for the preparation and storage of domestic hot water produced by traditional heat generators.
- Made of high quality S235JR EN10025 carbon steel, assembled and welded by automatic welding.
- Non-removable spiral heat exchanger made of S235JR EN10025 steel pipes welded to the tank
- Internal anti-corrosion glass transition treatment (enamelled coating) in accordance with DIN 4753.3, suitable for the use and consumption of potable water in accordance with D.M. 174/2004 and EU Directive 76/893.
- Non-removable rigid polyurethane insulation (for models up to 500 liters), removable rigid polyurethane cups for other models.
- External trim in ABS (up to 500 litres), for other models in PVC.
- 2 years warranty against corrosion.
- Certificate Complies with PED Directive 2014/68/EU Article 4.3

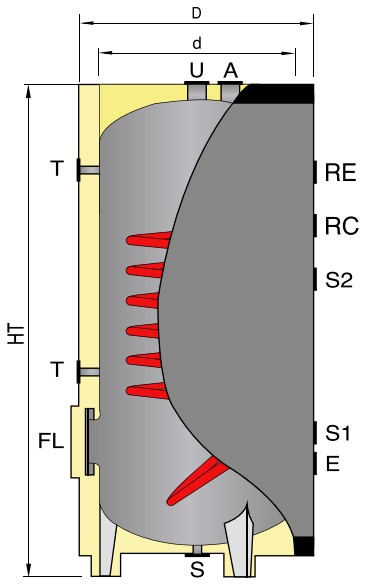

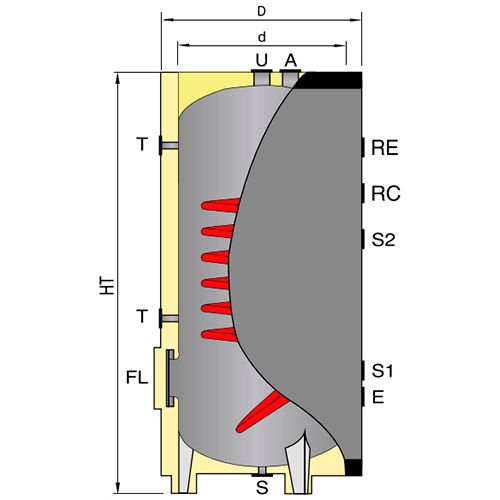

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 550 | 650 | 1485 | 90 |
| FL - flange diameter (Øi x Øe), mm | 120x180 |
| SS1 - heat exchanger area, m² | 1.11 |
| Volume of liquid in the heat exchanger, l | 6.15 |
| E - cold water inlet | G1" |
| U - domestic hot water outlet | G1"¼ |
| RC - sanitary Recycling | G¾” |
| RE - electric heater | G1”½ |
| S - drain connection | G1”¼ |
| A - magnesium anode | G1"¼ |
| So - probe connections | G½" |
| T - thermometer/thermostat connection | G½" |
| S1 - coolant inlet | G1" |
| S2 - coolant outlet | G1" |
| PE - maximum pressure, bar | 8 |
| PES - maximum working pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
On request, a special flange for mounting resistance is available.
Blind flange Ø180 with G2 threaded connection” for electric heater complete with gasket (for models up to 500 liters).
Blind flange Ø300 with G2 threaded connection” for electric heater complete with gasket (for other models).
