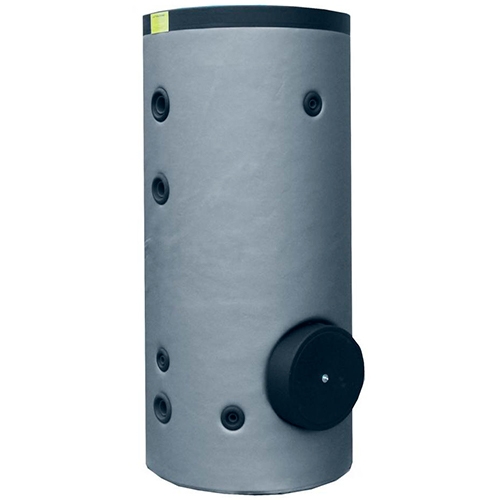

- Used for the preparation and storage of domestic hot water produced by traditional heat generators.
- Made of high quality S235JR EN10025 carbon steel, assembled and welded by automatic welding.
- Non-removable spiral heat exchanger made of S235JR EN10025 steel pipes welded to the tank
- Flange for inspection and cleaning or for integration.
- Internal anti-corrosion glass transition treatment (enamelled coating) in accordance with DIN 4753.3, suitable for the use and consumption of potable water in accordance with D.M. 174/2004 and EU Directive 76/893.
- Threaded magnesium anode
- Rigid polyurethane thermal insulation, removable.
- PVC exterior with zipper
- 2 years warranty against corrosion.
- Certificate Complies with PED Directive 2014/68/EU Article 4.3.

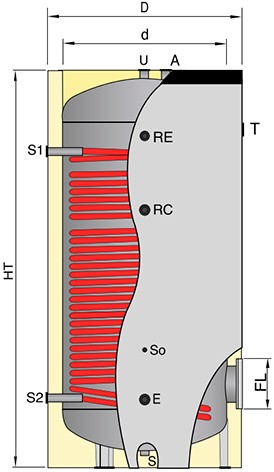

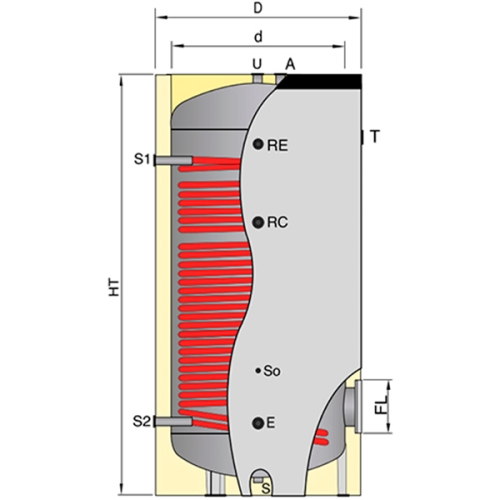

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 500 | 600 | 1215 | 95 |
| FL - Flange diameter (Øi x Øe), mm | 220x300 |
| SS1 - heat exchanger area, m² | 3 |
| Volume of liquid in the heat exchanger, l | 16 |
| E - Cold water inlet | G1"¼ |
| U - Domestic hot water outlet | G1"¼ |
| RC - Sanitization | G1"¼ |
| RE - Electrical heater | G1”½ |
| S - drain connection | G½" |
| A - Magnesium anode | G1"¼ |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| S1 - coolant inlet | G1"¼ |
| S2 - coolant outlet | G1"¼ |
| PE - maximum pressure, bar | 8 |
| PES - maximum working pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
