- Used for the preparation and storage of domestic hot water produced by traditional heat generators.
- Made of stainless steel AISI 316 L. assembled and welded by automatic welding.
- Stationary AISI 316 L stainless steel spiral heat exchanger welded to the tank
- Etching and passivation after completion of welding.
- Non-removable rigid polyurethane insulation (for models up to 500 liters), removable rigid polyurethane cups for other models.
- External trim in ABS (up to 500 litres), for other models in PVC.
- 5 year anti-corrosion warranty
- Certificate Complies with PED Directive 2014/68/EU Article 4.3.

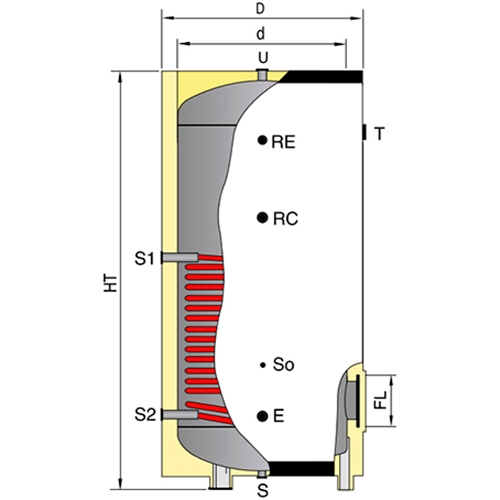

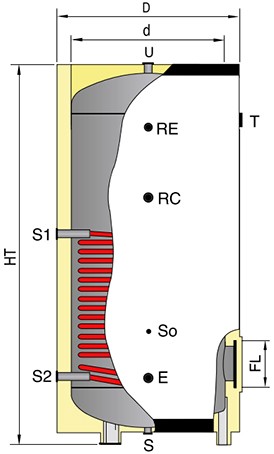

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 800 | 970 | 2025 | 170 |
| FL - Flange diameter (Øi x Øe), mm | 120x180 |
| SS1 - heat exchanger area, m² | 2.72 |
| Volume of liquid in the heat exchanger, l | 20.32 |
| E - Cold water inlet | G1"¼ |
| U - Domestic hot water outlet | G1"¼ |
| RC - Sanitization | G1"¼ |
| RE - Electrical heater | G1"½ |
| S - drain connection | G½" |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| S1 - coolant inlet | G1"¼ |
| S2 - coolant outlet | G1"¼ |
| PE - maximum pressure, bar | 8 |
| PES - maximum working pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
