- Used for the preparation and storage of domestic hot water produced using alternative low-temperature heat generators: heat pumps, solar energy, energy recovery, etc.
- Stainless steel sheets AISI 316L, assembled and welded using automatic welding.
- Stationary spiral heat exchanger with stainless steel tubes welded to the tank
- Flange for inspection and cleaning or for integration.
- Internal anti-corrosion treatment: pickling and passivation.
- Thermal insulation removable hard polyurethane cups
- PVC exterior with zipper.
- 5 years warranty against corrosion.
- Certificate Complies with Directive PED 2014/68/EU Article 4.3.

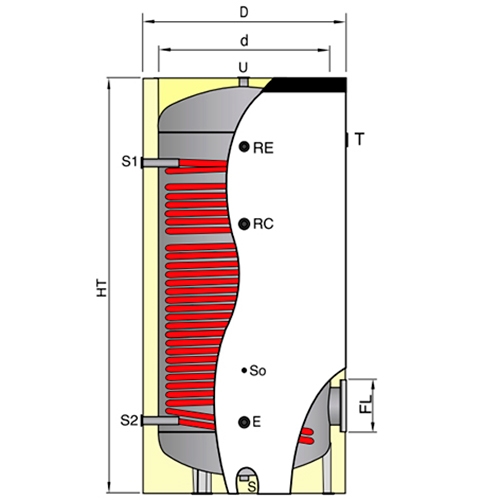

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 650 | 750 | 1535 | 155 |
| FL - Flange diameter (Øi x Øe), mm | 220x300 |
| SS1 - heat exchanger area, m² | 5 |
| Volume of liquid in the heat exchanger, l | 36 |
| E - Cold water inlet | G1"¼ |
| U - Domestic hot water outlet | G1"¼ |
| RC - Sanitization | G1"¼ |
| RE - Electrical heater | G1”½ |
| S - drain connection | G½" |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| S1 - coolant inlet | G1"¼ |
| S2 - coolant outlet | G1"¼ |
| PE - maximum pressure, bar | - |
| PES - maximum working pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
