- Used for heating and storing hot water using traditional or alternative energy sources such as heat pumps, solar collectors, etc. through the use of several heat exchangers.
- Made of high quality S235JR EN10025 carbon steel, assembled and welded by automatic welding.
- Removable heat exchanger made of stainless steel, “U” shaped type, welded to the plate complete with EPDM gasket.
- In 200-2500 liter boilers internal anti-corrosion glass treatment (enamelled coating) in accordance with DIN 4753.3, suitable for the use and consumption of drinking water in accordance with D.M. 174/2004 and EU Directive 76/893.
- In boilers with a volume of 3000-5000 liters, an internal anti-corrosion coating of CERAMPLAST on a micro-ceramic basis is used to work in aggressive environments with high temperatures, in installations with solar collectors, with a sharp increase in temperature, to prevent the spread of legionella bacteria. Fully compliant with drinking water requirements according to D.M. 174/2004 (Italian regulations) and CEE directive 76/893. Maximum operating temperature 100°C.
- Threaded magnesium anode
- Thermal insulation - environmentally friendly and recyclable polyester fiber panel with fire resistance Euroclass B s2 d0 standard UNI ENI 13501-1 with high insulating power.
- PVC exterior.
- 2 years warranty against corrosion.
- Certificate Complies with PED Directive 2014/68/EU Article 4.3.

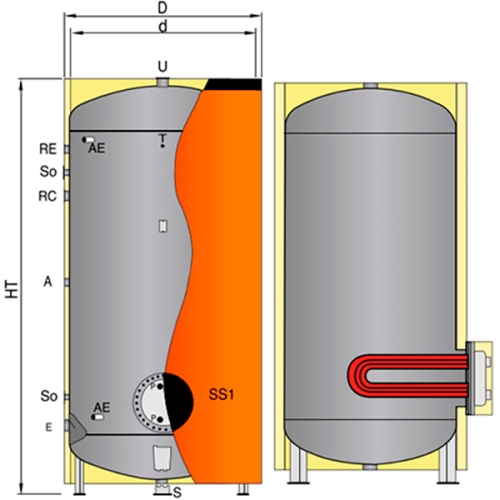

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 950 | 1050 | 2390 | 300 |
| FL - Flange diameter (Øi x Øe), mm | 400x480 |
| SS1 - heat exchanger area, m² | 7 |
| E - Cold water inlet | G2" |
| U - Domestic hot water outlet | G2" |
| RC - Sanitization | G2" |
| RE - Electrical heater | G1"½ |
| S - drain connection | G1”¼ |
| A - Magnesium anode | G1"½ |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| P - heat exchanger connection | G1"½ |
| AE - electronic anode | G½" |
| PE - maximum pressure, bar | 6 |
| PES - maximum working pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
