- Used for heating and storing hot water using traditional or alternative energy sources such as heat pumps, solar collectors, etc. through the use of several heat exchangers.
- Made of stainless steel AISI 316 L. assembled and welded by automatic welding.
- Removable heat exchanger made of stainless steel AISI 316 L, “U” shaped type, welded to the plate complete with EPDM gasket.
- Etching and passivation after completion of welding.
- Thermal insulation - environmentally friendly and recyclable polyester fiber panel with fire resistance Euroclass B s2 d0 standard UNI ENI 13501-1 with high insulating power.
- PVC exterior.
- 5 year anti-corrosion warranty
- Certificate Complies with PED Directive 2014/68/EU Article 4.3.

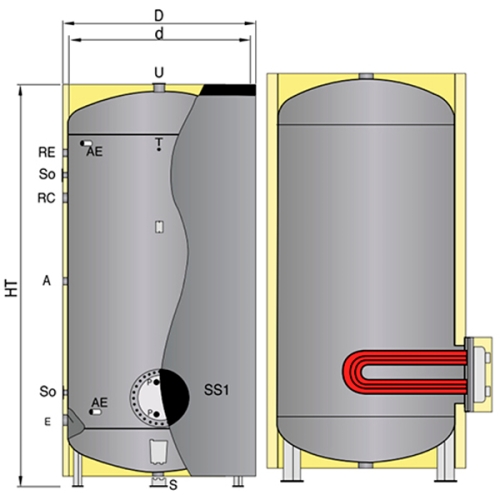

| d, mm | D, mm | HT, mm | Weight, kg |
|---|---|---|---|
| 450 | 550 | 1363 | 72 |
| FL - flange diameter (Øi x Øe), mm | 220x300 |
| SS1 - heat exchanger area, m² | 1 |
| E - cold water inlet | G1"¼ |
| U - domestic hot water outlet | G1"¼ |
| RC - Sanitization | G1"¼ |
| RE - electric heater | G1"¼ |
| S - drain connection | G1”¼ |
| A - additional connection | G1"¼ |
| So - probe connections | G½" |
| T - thermometer/thermostat | G½" |
| P - heat exchanger connection | G1" |
| AE - auxiliary connection | - |
| PE - maximum pressure, bar | 8 |
| PES - maximum working pressure of the heat exchanger, bar | 9 |
| TE - maximum temperature, °C | 100 |
