| Parameter | Meaning | Note |
|---|---|---|
| Max. volumetric flow (m³ / h) | 17 | * for water |
| Appointment | brazed type heat exchanger is designed to transfer heat between different media - heat transfer agents. | - |
| Working environment | - | can be used with other media |
| Working pressure / temperature | S standard: 1 circuit - 35 bar / -196 ºC 2nd circuit - 27 bar / 225 ºC H high: 1 circuit - 61 bar / -196 ºC 2nd circuit - 44 bar / 225 ºC D higher for CO2 applications | - |
| Max. working temperature (° С) | - | - |
| Min. working temperature (° С) | -196 | - |
| Scope of application | - | - |
| Number of plates (NP) | 20 | - |
| Hole size F1 / P1 | 33 mm |
| Hole size F2 / P2 | 33 mm |
| Hole size F3 / P3 | 33 mm |
| Hole size F4 / P4 | 33 mm |
Front plate: F1, F2, F3, F4
Back plate: P1, P2, P3, P4

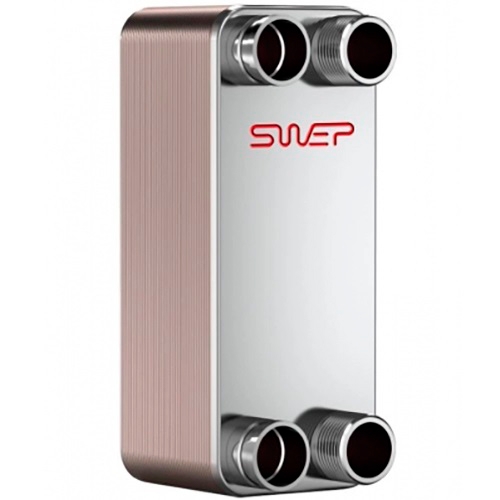

The front plate of the SWEP PHE is marked with an arrow on the adhesive label or embossed on the lid. These markings are used to locate the front of the PHE and to locate the inner and outer contours / channels. With the arrow pointing up, the left side (ports F1, F3) is the inner loop (narrow for asymmetric devices) and the right side (ports F2, F4) is the outer loop (wide for asymmetric devices). P1 / P2 / P3 / P4 ports are located on the rear side. Pay attention to their order.
Compact flange kit
Compact counter flanges
Soldering / welding connection
EPP insulation
HVAC insulation
PU 50 insulation
REF insulation
Wall bracket
A brazed heat exchanger is a plate heat exchanger designed to transfer heat from the coolant to the heated medium. Heat transfer takes place between two corrugated plates, which are connected by soldering in a sealed body.
