| parameter | value | Note |
|---|---|---|
| Max. volumetric consumption (m³ / h) | 9 | * For water |
| destination | brazed type heat exchanger is designed for heat transfer between different media - heat carriers. | - |
| Work environment | - | can be used with other environments |
| Operating pressure / temperature | S default: 1 circuit - 12 bar / -196 °C 2 circuit - 12 bar / 225 °C M average :: 1 circuit - 48 bar / -196 °C 2 circuit - 36 bar / 225 °C H high: 1 circuit - 54 bar / -196 °C 2 circuit - 42 bar / 225 ºC | - |
| Max. operating temperature (° C) | - | - |
| Min. operating temperature (° C) | -196 | - |
| Scope of Use | - | - |
| Number of plates (NP) | 50 | - |
| Aperture size F1 / P1 | 24 mm |
| Aperture size F2 / P2 | 24 mm |
| Aperture size F3 / P3 | 24 mm |
| Aperture size F4 / P4 | 24 mm |
Front plate: F1, F2, F3, F4
Back plate: P1, P2, P3, P4

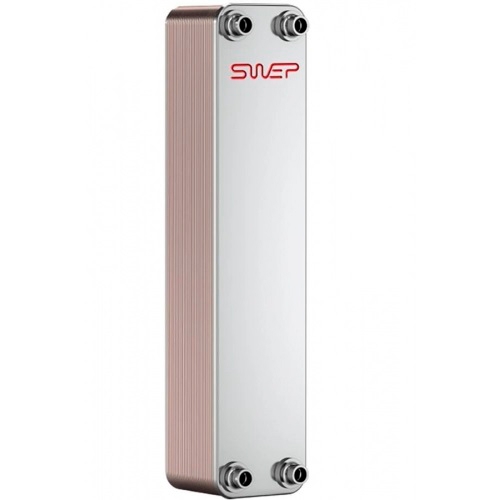

On the front plate of the SWEP PTO there is a marking in the form of an arrow applied to an adhesive label or embossed on the lid. This marking serves to determine the direction of the PTO and establish the location of internal and external circuits / channels. With the arrow pointing up, the left side (ports F1, F3) is the inner loop (narrow in asymmetric devices), and the right side (ports F2, F4) is the outer loop (wide in asymmetric devices). Ports P1 / P2 / P3 / P4 are located on the back side. Pay attention to the order of their location.
Compact flange kit
Compact matching flanges
Connection for soldering / welding
EPP insulation
HVAC insulation
PU 50 insulation
REF isolation
wall bracket
Soldered heat exchanger is a plate heat exchanger designed to transfer heat from the heat carrier to the heated medium. Heat exchange takes place between two corrugated plates connected by soldering into a sealed housing.
