1. For the manufacture of the main parts, stainless steel is used, which enhances the corrosion resistance.
2. The steam trap can operate at a temperature of 425 ˚C and a pressure of 4.2 MPa, so it can be applied in various industries, such as heavy, light and general industry.
3. The bimetallic material solves the air problem and allows the cool condensate or air to be released smoothly at the start of operation, which can effectively start up the steam equipment.
4. The insulating cover avoids frequent switching on and off.
5. Installation is easy because the device can be installed vertically or horizontally upon request.
6. Built-in strainer eliminates the need to install a filter in front of the product.
Compound
| Model | TSD-42 | |
| Application | Steam condensate | |
| Operating pressure | 0.035-4.2 MPa | |
| Permissible back pressure | Inlet pressure no more than 50% | |
| Max. temperature | 425 ° C | |
| Material | Frame | Stainless steel (SCS2A) |
| Disc, saddle | Stainless steel (special heat treatment) | |
| Threaded JIS Rc, NPT, BSPT | ||

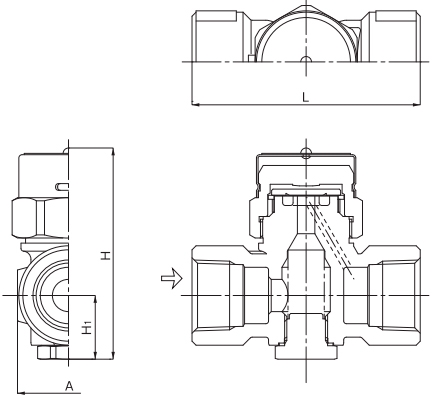

Installation position
| Nominal size | L | H | H 1 | A | The weight |
| 10A | 78 | 76 | 23 | 32 | 0.65 |
| 15A | 78 | 76 | 23 | 32 | 0.6 |
| 20A | 85 | 79 | 24 | 38 | 0.7 |
| 25A | 95 | 86 | 27.5 | 45 | 0.9 |

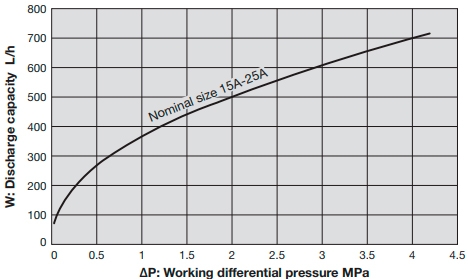

Maximum Continuous Discharge Capacity
• To select the size of the product, set the safety factor to 4-5. For example, if a 100 kg / h steam trap is required, select a steam trap capable of discharging between 400 and 500 kg / h for maximum efficiency.
• When selecting the capacity, the back pressure (outlet pressure) must be taken into account. This is because the drainage capacity is dependent on the operating differential pressure (the difference between inlet and outlet pressures).
For example, to find the capacity obtained with an inlet pressure of 1.0 MPa and an outlet pressure of 0.2 MPa, draw a vertical line upward from the 0.8 MPa operating differential pressure point in the table above.
