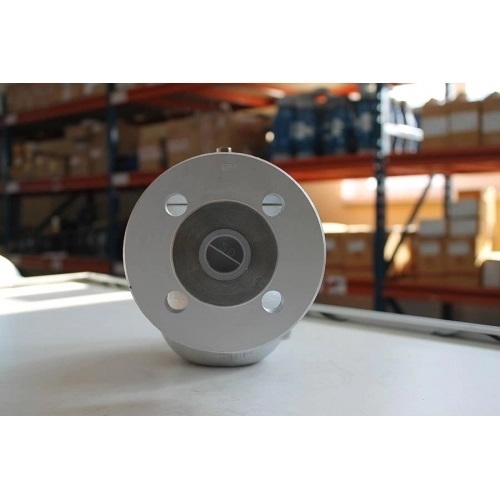

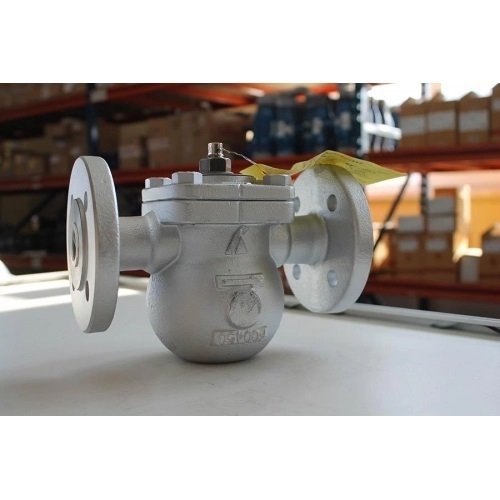

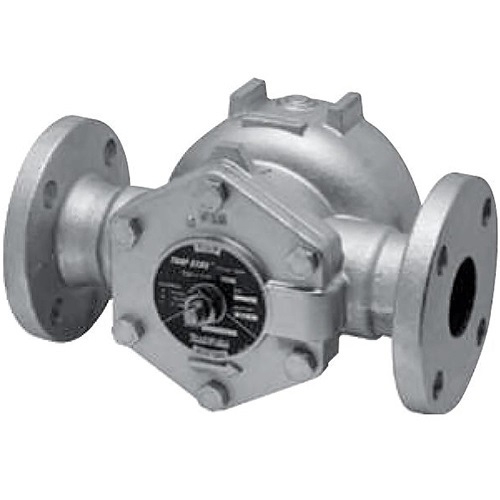

1. The TSF-10F can efficiently drain condensate without retention, enabling energy saving of the steam system without losing steam.
2. An integrated thermostatic air vent removes air from the lines and shortens the warm-up time.
3. By turning the valve, it is possible to apply different flow directions, both for horizontal and vertical installation. The flow direction can be easily switched without disassembly, for example by removing the cover.
4. Since the main parts are attached to the cover, it is possible to detach the cover without removing the body from the pipeline. This makes it easier to inspect and replace parts. & Nbsp;
| Model | TSF-10F | |
| Nominal size | 15A-25A | |
| Application | Steam condensation | |
| Working pressure (Max. working differential pressure) | TSF-_ _-5 0.01-0.5 MPa TSF-_ _-10 0.01-1.0 MPa TSF-_ _-21 0.01-2.1 MPa | |
| Max. temperature | 220 ° C | |
| Material | Corpus | Ductile iron |
| Float | Stainless steel | |
| Valve, valve seat | Stainless steel | |
| Connection | Flanged EN 1092 PN25 | |
Precautions when installing

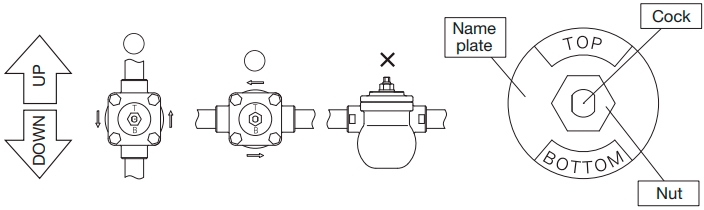

After completing the installation, adjust the direction on the nameplate in a pressureless environment.
Secure the tap with a wrench and loosen the nut. Turn the tap and adjust the direction of the UP and BOTTOM sign
respectively for the direction up and down. Secure the tap with a wrench and tighten the nut after adjusting.
* In case of bottom-up installation, to facilitate opening and draining of the steam trap in case of upward flow direction, shorten the vertical piping up to the trap.

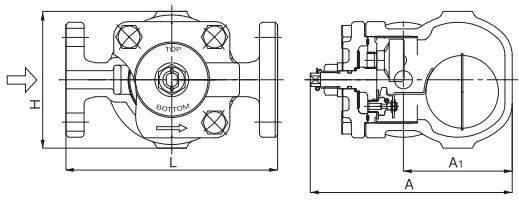

TSF-10F
| Nominal size | d | L | A | A i | H | Weight |
| 15A | 15 | 175 | 167 | 90 | 113 | 5.0 |
| 20A | 20 | 195 | 167 | 90 | 113 | 5.8 |
| 25A | 25 | 215 | 167 | 90 | 113 | 7,1 |

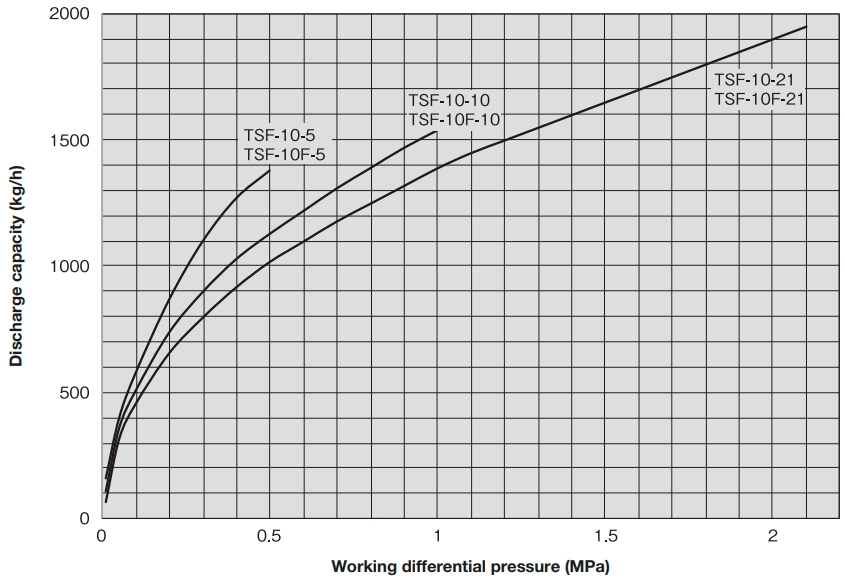

TSF-10F Maximum Continuous Performance
The bandwidth shown in the graph above is the maximum value. When designing your system, select a steam trap with sufficient safety factor (more than double the normal level).
