1. TSF-8 can effectively discharge condensate without retention with reliable operation due to the difference in specific gravity between steam and condensate.
2. Since the main parts are attached to the cover, it is possible to detach the cover without removing the body itself from the piping. This makes it easier to inspect and replace parts.
3. Excellent corrosion resistance and durability due to the fact that all main parts are made of stainless steel.
4. The filter is installed to protect internal parts from foreign objects and to improve durability.
| Model | TSF-8 | |
| Nominal size | 15A, 20A, 25A | |
| Apply | Steam condensate | |
| Working pressure (Max working differential pressure) | TSF-8-5: 0.01-0.5MPa (0.5MPa) TSF-8-10: 0.01-1.0MPa (1.0MPa) TSF-8-21: 0 .01-2.1 MPa (2.1 MPa) | |
| Max. temperature | 220 °C | |
| Material | Body | Ductile iron |
| Float | Stainless steel | |
| Valve, valve seat | Stainless steel | |
| Connection | JIS Rc Thread | |
Installation Precautions

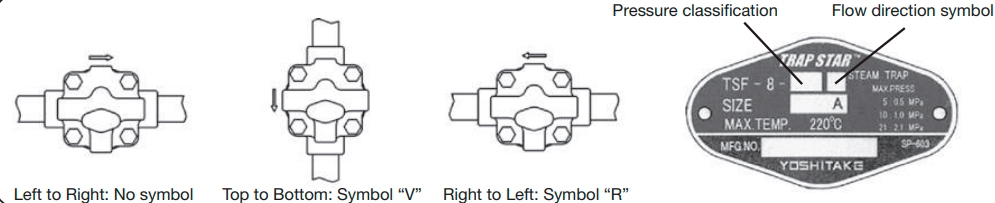

• Standard flow direction – from left to right, however the direction can be changed at the installation site.
See. reassembly procedures to change flow direction.
• If you have reassembled the product by changing its flow direction, write the symbol on the plate according to the new flow direction. V– for top-down flow or R – for flow from right to left.
| Flow direction | Symbol |
| Left to right (default) | Empty |
| From top to bottom | V |
| Right to left | R |
*Available below and above.
To make it easier to open and drain the trap when using upward flow, shorten the vertical piping to the trap.
| Nominal Size | d | L | A | A1 | H | Weight |
|---|---|---|---|---|---|---|
| 15A | Rc 1/2 | 121 | 147 | 90 | 113 | 3.7 |
| 20A | Rc 3/4 | 121 | 147 | 90 | 113 | 3.7 |
| 25A | Rc 1 | 145 | 147 | 90 | 113 | 4.1 |

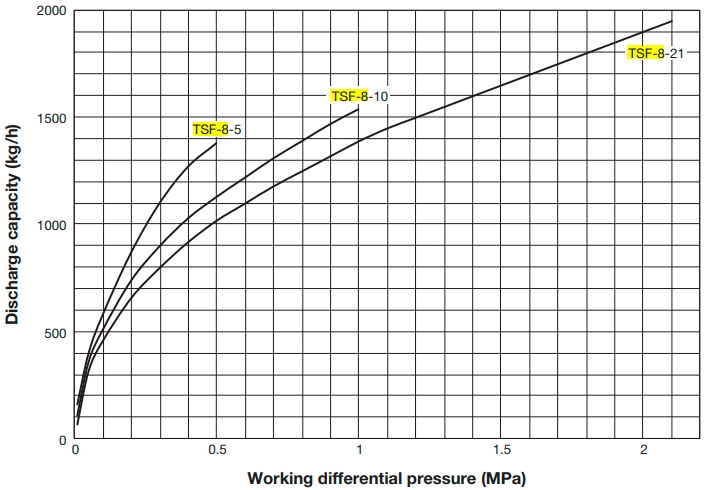

Maximum continuous performance
*The throughput shown in the graph above is the maximum value.
