- The bimetallic material solves the air problem and allows the cool condensate or air to be released smoothly at the start of operation, which allows the steam equipment to start efficiently.
- The stainless steel valve disc and seat are specially heat treated and extremely durable.
- The valve disc, valve seat and bimetallic material can be replaced in the field without disconnecting the trap from the piping.
- Easy maintenance and inspection due to simple design: the only removable part is the valve disc.
- Compact, lightweight and inexpensive. It is applicable in a wide range of working pressures and does not require adjustment.
- Fits in any direction and is easy to assemble.
- Trouble-free operation and no steam leaks due to air isolation.
- Built-in strainer eliminates the need to install a filter in front of the product.
- Large bandwidth.
| Model | TD-10NA | |
| Nominal size | 15-25A | |
| Application | Steam condensate | |
| Operating pressure | 0.035-2.0 MPa | |
| Permissible back pressure | Inlet pressure no more than 50% | |
| Max. temperature | 220 ° C | |
| Compound | JIS Rc threaded | |
| Material | Frame | Malleable cast iron |
| Disc, saddle | Stainless steel (special heat treatment) | |

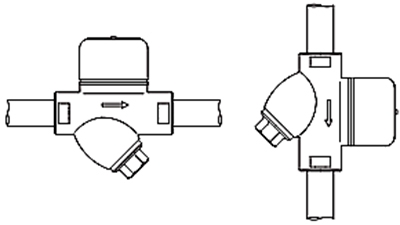

Installation position
* The steam trap can be installed horizontally, inclined or vertically.

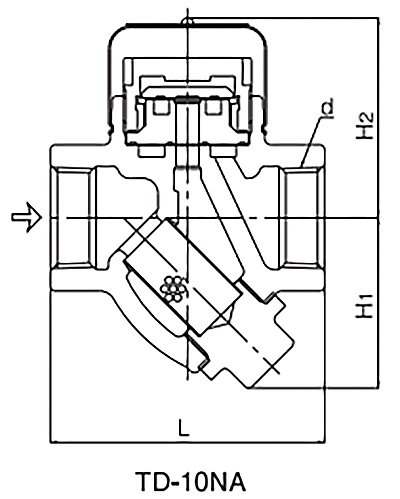

TD-10NA
| Nominal size | d | L | H 1 | H 2 | The weight |
| 15A | Rc 1/2 | 90 | 49 | 55.5 | 0.9 |
| 20A | Rc 3/4 | 90 | 53 | 60.5 | 1,2 |
| 25A | Rc 1 | 90 | 56 | 62.5 | 1.4 |

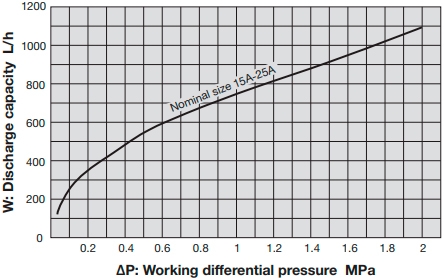

Maximum Continuous Discharge Capacity Chart
* The bandwidth shown in the graph above is the maximum value. When designing the system, select a steam trap with sufficient safety factor (more than four to five times the normal level). That is, for example, if a throughput of 100 kg / h is required, then select a steam trap capable of discharging from 400 to 500 kg / h.
