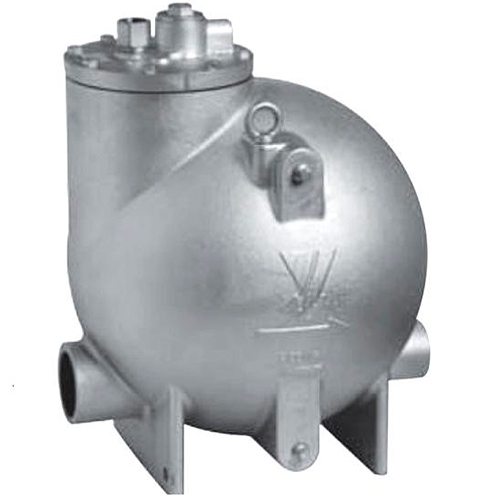

- Does not require power supply, uses steam or air pressure for operation.
- Ease of maintenance and inspection due to the fact that the main parts are fixed to the cover.
- It does not require any intervention after installation, it works automatically.
- Operating costs can be significantly reduced, since gas is consumed to operate the product only in pumping mode.

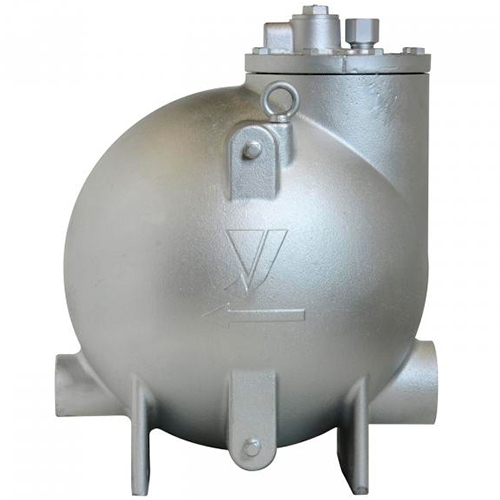

| Parameter name | Meaning | |
| Model | PF-7000 | |
| Nominal size | 25A (condensate inlet: 25A / condensate outlet: 25A) 40A (condensate inlet: 40A / condensate outlet: 40A) 50A (condensate inlet: 50A / condensate outlet: 50A) 80A (condensate inlet: 80A / condensate outlet: 50A) | |
| Application | Steam condensate, non-hazardous liquids | |
| Control environment | Steam / air | |
| Max. operating pressure | 0.8 MPa * 1 | |
| Control pressure | Steam / air | |
| Managed differential Pressure | 0.8 MPa * 1 | |
| Max. working temperature | 180 ° C | |
| Material | Frame | Ductile Iron (FCD450) |
| Adjustable details fur-ma | Stainless steel | |
| Float (P) | Stainless steel | |
| Connection | Threaded JIS Rc | |
| Inlet check valve | Connected externally * 2 | |
*1. The most suitable value for the control pressure is an outlet back pressure of +0.1 to 0.2 MPa.
* 2. Attach an optional size check valve (SCV-2 or SCV-3) to the product inlet and outlet.

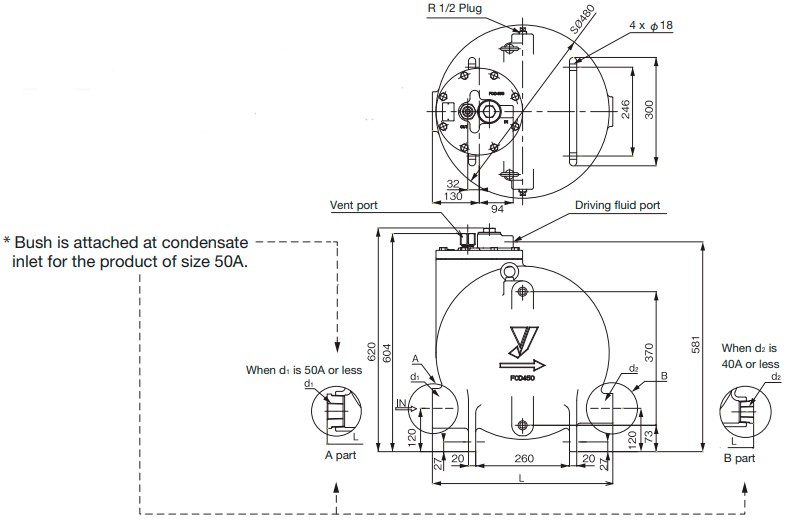

| Nominal size | d 1 | d 2 | L | The weight |
| 25A | Rc 1 | Rc 1 | 544 | 92 |
| 40A | Rc 1-1 / 2 | Rc 1-1 / 2 | 549 | 92 |
| 50A | Rc 2 | Rc 2 | 525 | 91 |
| 80A | Rc 3 | Rc 2 | 500 | 90 |
Control port environment Port. Air vent> Rc 1/2 Rc 1
* Product sizes 25A and 40A have a bushing at the inlet and outlet of the condensate

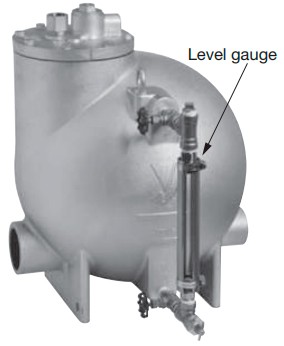

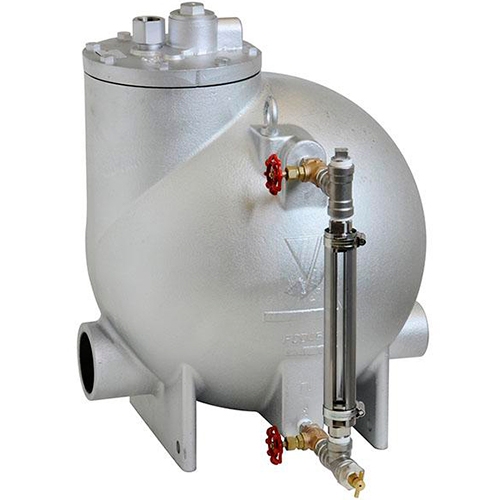

Option

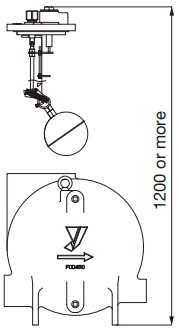

Maintenance Space
Flow Rate

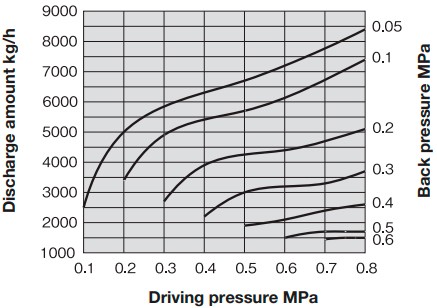

Driving fluid: steam

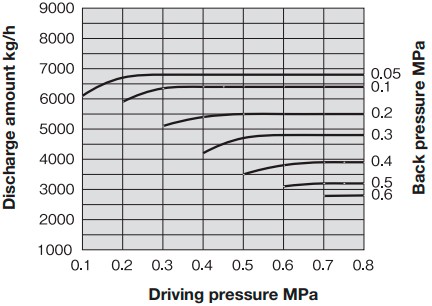

Driving fluid: air
■ Flow correction factor (pipe example)
∙ The condensate drainage capacity depends on the inlet pressure. Multiply the volume by the factor below for the condensate inlet head (P2). ∙ Condensate inlet pressure - level relative to the bottom of the product.
| Managed Wednesday | Condensate inlet head (mm) | |||
| 800 | 1000 | 1200 | 1400 | |
| Steam | 0.85 | 1.00 | 1.05 | 1.15 |
| Air | 0.85 | 1.00 | 1.15 | 1,3 |
The condensate drainage capacity depends on the size of the inlet and outlet pipes. Multiply the volume by the appropriate factor depending on the size.
| Managed Wednesday | Size (condensate inlet-outlet) | |||
| 80A-50A | 50A-50A | 40A-40A | 25A-25A | |
| Steam | 1.00 | 0.90 | 0.70 | 0.35 |
| Air | 1.00 | 0.95 | 0.70 | 0.30 |

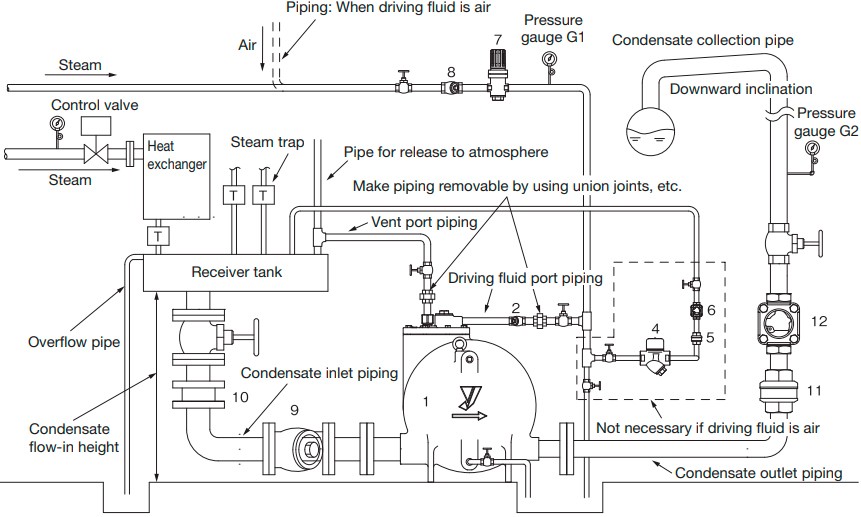

The principle of operation of a mechanical condensate pump is to pump condensate draining from a receiver tank into a condensate collector under the influence of steam or air pressure.
| Pos. | Name | Pos. | Name | Pos. | Name |
| 1 | Mechanical condensate pump | 4 | steam trap | 6.12 | Viewing window |
| 2,8,9 | Filter | 5,10,11 | Check valve | 7 | Pressure reducing valve |
